Friction Torque Limiter PTO Drive Shaft Type 13+FF

Home PTO Shafts Friction Torque Limiter PTO Drive Shaft Type 13+FF
QQ video HD1

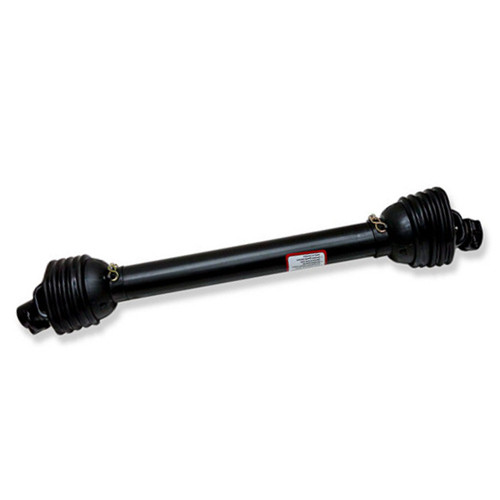

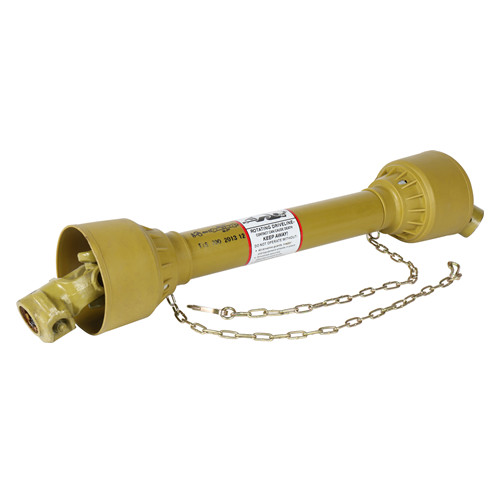

Friction Torque Limiter PTO Drive Shaft Type 13+FF

  • Part Number:Friction Torque Limiter PTO Drive Shaft Type 13+FF

    Material:Steel 45#, 40Cr,20CrMnTi ect.

    Process:Forged

    Surface:Heat treatment; Rust prevention

    Color:Yellow ,Black or as customer requirements

    Application:Agriculture machinery,tractors and various farm implements


  • Attachment Inquiry

    Description

    Agricultural Tractors Friction Torque Limiter PTO Drive Shaft Type 13(Spline yoke with collar)+FF(Friction Torque Limiter 2 Discs or 4 Discs with Taper pin or Clamp bolt)

    Explanation:

    1. Processing of Yoke:Forging

    2. Tube Type: Triangular Tube, Lemon Tube or Star Tube

    3. Yoke Type:push pin/quick release/ball attachment/collar/double push pin/clamp bolt/taper pin

    4. Spline Type:1 3/8" Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 8*42*48*8; 8*32*38*6

    5. Plastic cover: Yellow or Black and style Wave or Regular

    6. Length: The Length from Cross Center to Cross Center(LC); Overall Length(L)

    7. Series:1Series;2Series;3S;4S;5S;32S,6S;7S;7NS,8S,36S,9S,10S,48Series

    8. Use:Power transmission of Tractors and various farm implements

    PTO shaft   seriesCross Ref.Cross   sizes
    Series 11.0122mm54mm
    Series 22.0123.8mm61.3mm
    Series 33.0127mm70mm
    Series 44.0127mm74.6mm
    Series 55.0130.2mm80mm
    Series 3232.0132mm76mm
    Series 66.0130.2mm92mm
    Series 7N7N.0135mm94mm
    Series 77.0130.2mm106.5mm
    Series 88.0135mm106.5mm
    Series 3636.0136mm89mm
    Series 99.0141mm108mm
    Series 1010.0141mm118mm
    Series 4848.0148mm127mm
